Bluetooth LE 5.2 SoC
CMT4501W
Intelligent interference mitigation technology, optimizing Bluetooth connection stability.
Bluetooth LE 5.2 SoC

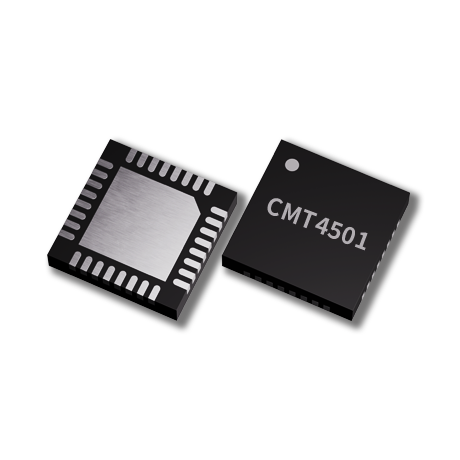

CMT4501 is a System on Chip (SoC) for Bluetooth® low energy applications. CMT4501 has 32-bit ARM® Cortex™-M0 CPU with 138KSRAM/Retention SRAM and an ultra-low power, high performance, multi-mode radio. CMT4501 can support BLE with security, application and over-the-air download update. Serial peripheral IO and integrated application IP enables customer product to be built with minimum bill-of-material (BOM) cost.
Applications:
wearables, beacons, appliances, home and building, health and medical, sports and fitness, industrial and manufacturing, retail and payment, security, data transmission, remote control, PC/mobile/TV peripherals, internet of things (IoT)
Product Type：
BLE SoCTechnology：
5.0PHY：
1M/2MOutput：
10dBmSensitivity：
-97dBmCurrent-TX：
8mACurrent-RX：
8mASleeping Current：
13uAVDD：
1.8-3.6VFlash：
256/512KBRAM：
138KBUART Baund Rate：
115200bpsInterface：
UARTSize：
-
