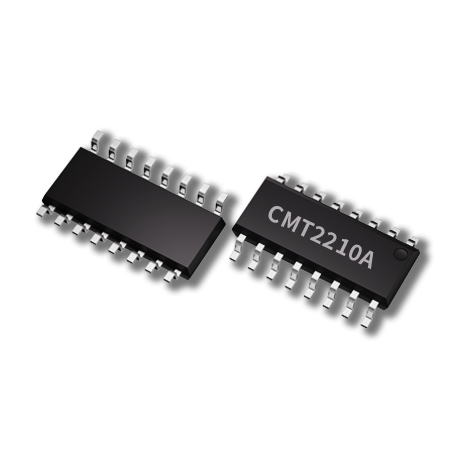

CMT2210AW

RF Receivers



1. Descriptions of RF Receiver IC CMT2210AW:

The CMT2210AW devices are ultra low power, high performance, low cost OOK stand-alone RF receiver for various 300~960MHz wireless applications. The CMT2210AW covers the frequency range from 300~960MHz. They are part of the CMOSTEK NextGenRF family which includes a complete line of transmitters, receivers and transceivers.

2. Features of RF Receiver IC CMT2210AW:


l  Embedded EEPROM

-Very easy development with RFPDK

-All features are programmable

l  Frequency Range: 300~480MHz

l  Symbol Rate: 0.1~40ksps

l  Sensitivity: -113 dBm @ 1ksps,0.1% BER

l  Configurable Duty-Cycle Operation Mode

l  Supply Voltage: 1.8~3.6V

l  Low Power Consumption: 3.8mA

l  Low Sleep Current

-60nA when sleep timer off

-440nA when sleep timer on

l  RoHS Compliant

l  16 pin QFN 3*3 and SOP 16 Package Options

3. Applications of RF Receiver IC CMT2210AW:

l  Low Cost Consumer Electronics Applications

l  Home and Building Automation

l  Infrared Receiver Replacement

l  Industrial Monitoring and Controls

l  Remote Automated Meter Reading









Design documents and resources
DEMO & Tools:
CMOSTEK WriterConfig V1.3.0 for Writer V3.1
2018-12-04
UserGuide
2018-12-04
RFDK_PIC16_LCD V1.1hardware(131029)
2018-11-22
AN2004-RF67 communication example
2018-12-03
HopeRF_RFDK_RFMxx_DEMO_V2.1_operation_manual
2018-11-22
HopeRF_RF-EVB_manual_V1.21
2018-11-22
AN0002-Hopeduino platform construction guideline
2018-11-20
AN108 CMT2210-17A Configuration Guideline
2018-12-03
AN1003-CMT2150A & CMT2210A communication example(1527 coding)
2018-12-03
AN107 CMT2210A Schematic and PCB Layout Design Guideline
2018-12-03
Design Guides:
AN0002-Hopeduino platform construction guideline
2018-11-22
HOPERF AN151 CMT2210BW-CMT2210LAW Configuration Guideline
2018-12-04
AN157-CMT221xLH-Configuration Guide-EN-V0.9
2019-04-01
Certification & Test Reports:
RF IC ROHS
2021-05-18
RF IC REACH
2021-05-18
