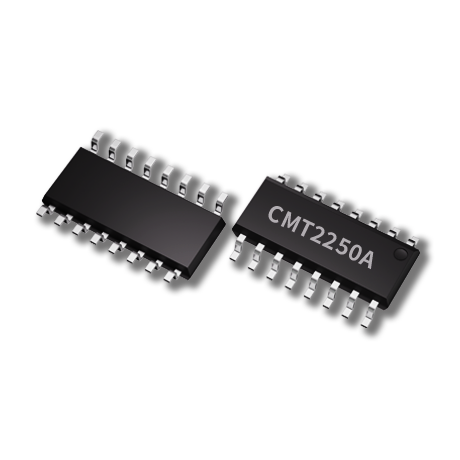

The CMT2250AW is a true single-chip, ultra low power and high performance device that consists of an OOK RF receiver, a data decoder and 4 data output pins for various 300 to 480 MHz wireless applications. The device integrates a data decoder that is not only compatible with the most common used encoding format of 1527 and 2262, but also a more efficient, flexible and powerful format of 1920 designed by CMOSTEK. The device delivers sensitivity up to -114 dBm while consuming only 3.8 mA current when it is always on. An embedded EEPROM allows the frequency, symbol rate and other features to be programmed into the device using the CMOSTEK USB Programmer and RFPDK. Alternatively, in stock product of 433.92 MHz is available for immediate demands with no need of EEPROM programming. When pairing the device to CMOSTEK transmitters, the synchronization ID can be programmed into both of the transmitter and receiver during the manufacturing phase, or studied by the receiver from the transmitter remotely by end customers. The CMT2250AW is part of the CMOSTEK NextGenRFTM family, together with CMT215x series transmitters, they enable ultra low cost, low power consumption RF links.

Applications:
 Low-Cost Consumer Electronics Applications
 Remote Control
 Smart LED Control (On/Off Dimming)
 Home Security and Alarm
 Garage and Gate Openers
 Home and Building Automation
 Industrial Monitoring and Controls
 Sensor Networks
 Health Monitors
 Remote Keyless Entry (RKE)
