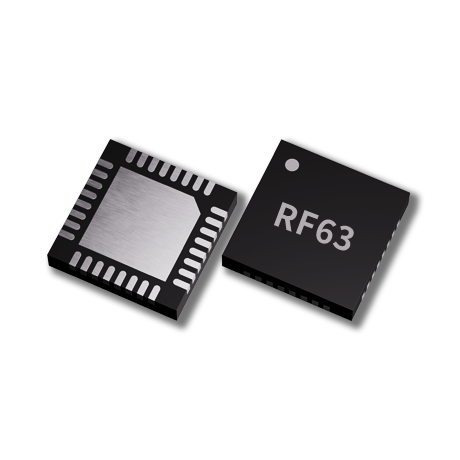

RF63W

Transceiver IC


1. Descriptions of Wireless RF Transceiver IC RF63W:


The RF63W is a low cost single-chip transceiver operating in the frequency ranges from 863-870, 902- 928 MHz and 950-960 MHz. The RF63W is optimized for very low power consumption (3mA in receiver mode). It incorporates a baseband modem with data rates up to 200 kb/s.



Data handling features include a sixty-four byte FIFO, packet handling, automatic CRC generation and data whitening. Its highly integrated architecture allows for minimum external component count whilst maintaining design flexibility. All major RF communication parameters are programmable and most of them may be dynamically set. It complies with European (ETSI EN 300-220 V2.1.1) and North American (FCC part 15.247 and 15.249) regulatory standards.


2. Features of Wireless RF Transceiver IC RF63W:


● Low Rx power consumption: 3mA

● Low Tx power consumption: 25 mA @ +10 dBm

● Good reception sensitivity: down to -107 dBm at 25 kb/s in FSK, -113 dBm at 2kb/s in OOK

● Programmable RF output power: up to +12.5 dBm in 8 steps

● Packet handling feature with data whitening and automatic CRC generation

● Wide RSSI (Received Signal Strength Indicator) dynamic range, 70dB from Rx noise floor

● Bit rates up to 200 kb/s, NRZ coding

● On-chip frequency synthesizer

● FSK and OOK modulation

● Incoming sync word recognition

● Built-in Bit-Synchronizer for incoming data and clock synchronization and recovery

● 5 x 5 mm TQFN package

● Optimized Circuit Configuration for Low-cost applications


3. Applications of Wireless RF Transceiver IC RF63W:


● Wireless alarm and security systems

● Wireless sensor networks

● Automated Meter Reading

● Home and building automation

● Industrial monitoring and control

● Remote Wireless Control
