Ultra Low Power RF-SoC

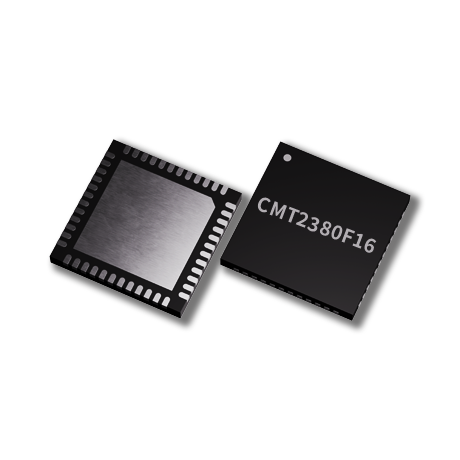

CMT2380F16W
Advanced mixed-signal design on an independently innovated development platform.
Ultra Low PowerCMT2380F16 is an ultra-low power, high performance, OOK/(G)FSK RF-SoC, integrated with enhance 1-T 80C51 CPU，and an ultra-low power, high performance, OOK (G) FSK RF transceiver. CMT2380F16 operates from 1.8 to 3.6 V, up to +20 dBm Tx power and -121 dBm sensitivity, only 72 mA Tx current and 8.5 mA Rx current. It also include more peripheral, support enhance UART, I2C and SPI interface, up to 25 IO, support IHRC, ILRC, 32.768 kHz Ext. Crystal, supports a variety of packet formats and codec methods, up to 64-byte Tx/Rx FIFO, Duty-Cycle operation mode, channel sensing, high-precision RSSI, low-voltage detection, power-on reset, low frequency clock output, manual fast frequency hopping, squelch and etc.
Applications:
Automatic meter reading (AMR)
Home security and building automation
ISM band data communication
Industrial monitoring and control
Remote control and security system
Remote key entry
Wireless sensor node
Tag reader
Product Type：
RF ChipT/R：
TRxModulation：
2(G)FSK/(G)MSK/OOKMaximumData Rate：
0.5-300KbpsFrequency Range：
127-1020MHz Sub-1GHzSensitivity：
-121dBmOutput Power：
20dBmSize：
6*6*0.75mmPackage：
QFN
