CMT1300
Products Overview Related Products Contact Us
High Reliability Enhanced Isolation Amplifier
CMT1300
Based on HOPERF’s capacitive isolation technology
Contact Us
Products
Home Products Applications Supports About HOPERF Contact Us
Analog Devices & Signal Chain
Wireless RF Analog Devices & Signal Chain

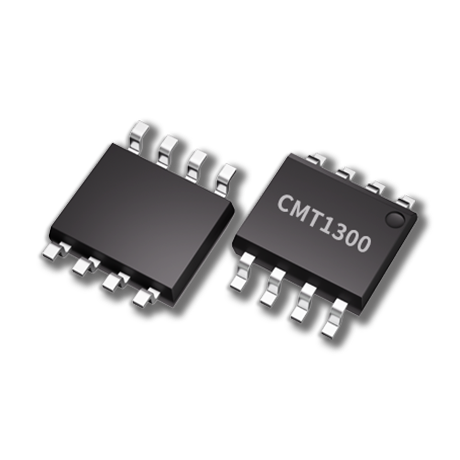

CMT1300
High Reliability Enhanced Isolation Amplifier
Description：
CMT1300 is a high-performance enhanced isolation amplifier based on HOPERF’s capacitive isolation technology to isolate the output from the input. The linear differential input signal range of this device is ±50 mV (±64 mV full scale). Differential inputs are well-suited for shunt resistor-based current sensing in high-voltage applications that require electrical isolation. The device has a fixed gain (41) and provides a differential
analog output. Low offset and gain drift ensure accuracy over the temperature range. High common mode transient immunity (CMTI) ensures that the device can provide accurate and reliable detection even in the presence of high-power switches in motor control applications. Fail-safe functions include input common-mode overvoltage detection and VDD1 loss detection, simplifying system-level design and diagnostics.
Application：
 Shunt current monitoring
 AC motor control
 Uninterruptible power supply
 Car charger
Main Datasheet

Isolation Voltage：

5000Vrms

Clock Frequency：

Input Voltage Range：

±50 mV

High CMTI：

150 kV/μ s (typical)

SNR：

72 dB or 86 dB (Typ)

Operation Temperature：

-40℃ ~125℃
Manual Download
