CMT8603X Single-Channel Isolated Gate Driver

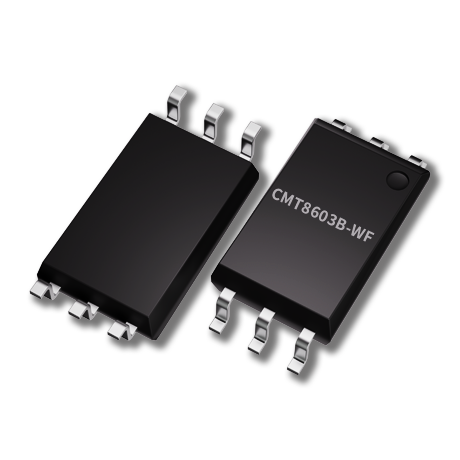

CMT8603B-WF
CMT8603X Single-Channel Isolated Gate Driver
CMT8603X Single-Channel Isolated Gate Driver
Description
The CMT8603X is a single-channel isolated gate driver which is pin-compatible for popular opto-coupled gate driver. It can source 4A and 6A sink peak current. Systemrobustness is supported by 150kV/us minimum commonmode transient immunity (CMTI).The driver operates with a maximum supply voltage of 32V. While the input circuit imitates the characters of LEDs, it has performance advantages compared to standard opto-isolated gate drivers including better reliability and aging performance, higher working temperature, shorter propagation delay and smaller pulse width distortion.As a result, the CMT8603X is suitable to replace optoisolated driver in high reliability, power density and efficiency switching power system. The CMT8603X is available in SOW6 / SOP8 and DUB8 packages.
Applications
Isolation Voltage：
5kVDrive Current：
5ALow Voltage Protection：
9VCMTI：
150kV/usTemperature Range：
-40°C~125°CDriver Type：
OptocouplerPackage：
SOW6
