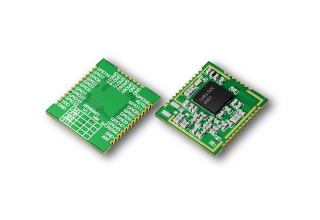

LPWAN wirelessRFM6601SE is a general LPWAN wireless communication module, with integrated RF transceiver, modem and a 32-bit RISC MCU. The MCU uses ARM China STAR-MC1 processor, with 48MHz operation frequency. The RF transceiver has continuous frequency coverage from 150MHz to 960MHz. The modem supports LoRa modulation for LPWAN use cases and (G)FSK modulation for legacy use cases. The modem also supports BPSK modulation in TX and (G)MSK modulation in TX and RX. RFM6601SE provides ultra-long range and ultra-low power communication for LPWAN applications. RFM6601SE can achieve a high sensitivity to -138 dBm and the maximum transmit power is up to +22 dBm. This makes RFM6601SE suitable to be used in long-range LPWAN with high efficiency.
Applications:
Smart meters、Supply chain and logistics、Building automation、Agricultural sensors、Smart cities、Retail store sensors、Asset tracking、Streetlights、Parking sensors、Environmental sensors、Healthcare、Smoke sensors、Safety and security sensors、Remote control applications.
Modulation：
LoRa/(G)FSK/(G)MSKFrequency：
470/868/915MHz Sub-1GHzVDD：
1.7-3.7VMax.Data Rate：
300KbpsCurrent-Tx：
108mACurrent-Rx：
9.2mASensitivity：
-138dBmOutput：
22dBmSize：
19*19*2mmInterface：
UART
