RF Transceiver

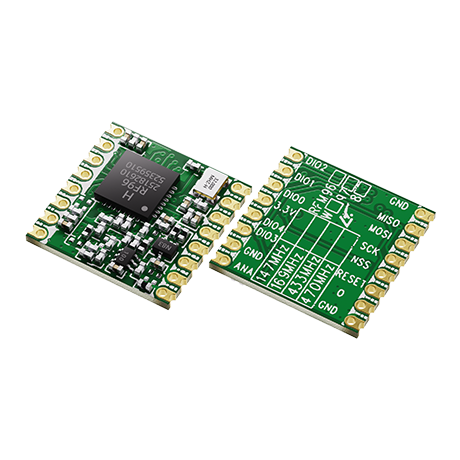

RFM96W
Advanced mixed-signal design with a pioneering adaptive rate algorithm.
RF Transceiver
The RFM96W transceivers feature the LoRaTM long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.Using Hope RF’s patented LoRaTM modulation technique RFM96W can achieve a sensitivity of over -148dBm using a low cost crystal and bill of materials.
The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness. LoRaTM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.
These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The RFM96W deliver exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing devices.
Applications of RF Transceiver Module RFM96W:
● Automated Meter Reading.
● Home and Building Automation.
● Wireless Alarm and Security Systems.
● Industrial Monitoring and Control
● Long range Irrigation Systems
Modulation：
FSK/(G)FSK/MSK/(G)MSK/LoRa/OOKFrequency：
433/470MHz Low-frequencyVDD：
1.8-3.7VMax.Data Rate：
300KbpsCurrent-Tx：
-Current-Rx：
10.3mASensitivity：
-140dBmOutput：
20dBmSize：
16*16mmInterface：
SPI
RFDK_PIC16_LCD_V1_1hardware
RFMXXB_TOOLS
RFXXB_TOOLS
HopeRF_RFDK_RFMxx_DEMO_V2_1_operation_manual
HopeRF_RF-EVB_manual_V1_21
HopeRF_HSP_V1_3
CP210x_VCP_Windows
RFM9x_GUI_Setup_V1_1
RFM9x_GUI_User_Guide_V1_0_EN
STM32F103ZE_sx127x_gpio
STM32F103ZE_sx127x_SPI
