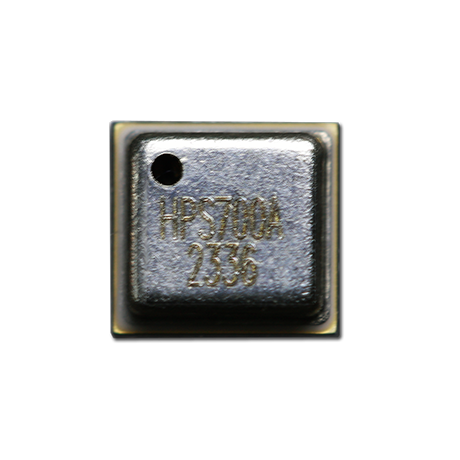

Digital Pressure Sensor
HPS700A
Digital Pressure Sensor
Descriptions：
The HPS700A-M employs a MEMS pressure sensor with an I²C interface to provide accurate temperature, pressure data. The pressure and temperature outputs are digitized by a high resolution 24-bit ADC. Data compensation is integrated internally to save the effort of the external host MCU system.
Features：
Operating voltage: 1.8V to 3.6V
Applications：
Absolute Accuracy：
±2.0kPa (Typ.)Pressure Range：
0-1600kPaTemp Range：
-40℃~+85℃Working Voltage：
1.8-3.6VWoking Current：
-Sleep Current：
<0.1uASize：
3.8*3.6*1.15mmPackage：
8-Pin LGAInterface：
I²C
