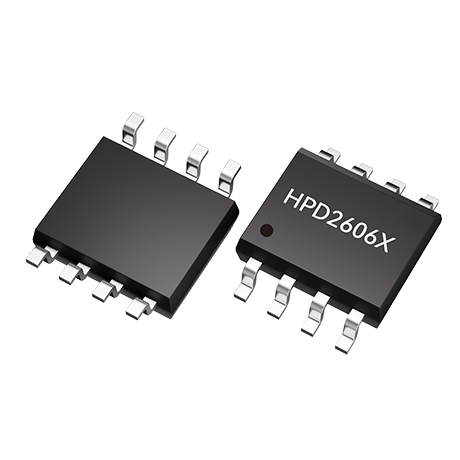

600V Half-Bridge Driver
HPD2606X
A high voltage, high speed power MOSFET and IGBT drivers.
600VThe HPD2606X is a high voltage, high speed power MOSFET and IGBT drivers. Proprietary HVIC and latch immune CMOS technologies enable ruggedized circuit construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600 V.
Power Switch：
IGBT/ MOSFETIOH/IOL：
0.13/0.27ABus voltage (Max)：
600VInput VCC：
10-20VTon/Toff Typ：
100/130nsTr/Tf Typ：
70/25nsDeadtime Typ：
520nsOperating Temp：
-40~125℃Package Group：
SOP8Packing/QTY：
Reel/1000
