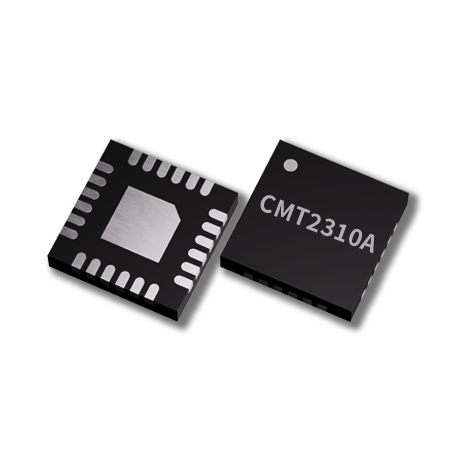

CMT2310AW

High-performance Sub-1GHz RF Transceiver


Description


The CMT2310A is an ultra-low power, high-performance, OOK / 2 (G)FSK / 4 (G)FSK based RF transceiver, applicable to various applications within the 113 - 960 MHz frequency band. The product is part of the CMOSTEK NextGenRFTM product family which covers a complete product line consisting of transmitters, receivers and transceivers. The high-density integration of CMT2310A simplifies the required BOM in system design. With Tx power reaching +20 dBm and sensitivity reaching -122 dBm, it can achieve optimized performance of application RF links. Through providing multiple data packet formats and code methods, this product ensures the flexible supporting of various applications. Besides, the CMT2310A provides functions such as 128-byte Tx/Rx FIFO, multiple GPIO and interrupt configurations, Duty-Cycle mode, LBT(listen before talk), high-precision RSSI, LBD, power on reset, low-frequency clock output, quick frequency hopping, squelch, etc., which allows more flexible application design and gains more product differentiation capability.


Features


  • Frequency range: 113 – 960 MHz

  • Modulation/demodulation: OOK, 2 (G)FSK, 4 (G)FSK

  • Data rate: 0.1 - 1000 kbps

  • Sensitivity: 2 FSK, -122 dBm DR=2.4 kbps, 433.92 MHz

                        4 FSK, -88 dBm DR=1 Mbps, 433.92 MHz

                        OOK, -94 dBm DR= 300 kbps, 433.92 MHz

  • Adjacent channel rejection : 62 dBc, BW = 4.8 kHz,

                                                 Channel space = 12.5 kHz

  • Blocking: 76 dBc , ±1 MHz offset, BW = 4.8 kHz

  • Operating voltage range: 1.8 - 3.6 V

  • Tx current: 30 mA @ 13 dBm, 433.92 MHz, FSK

                      82 mA @ 20 dBm, 433.92 MHz, FSK

  • Rx current: 9.6 mA (DCDC) @433.92 MHz, FSK

  • No extra RF switching components required in single antenna mode

  • Multiple super-low power (SLP) Rx modes available

  • Sleep current: 400 nA, Duty Cycle = OFF

                          800 nA, Duty Cycle = ON

  • Special features:

  • Quick and stable automatic frequency control (AFC)

  • 3 varied clock data recovery systems (CDR)

  • Quick and accurate valid signal detection (PJD, RSSI)

  • Super-low power (SLP) and Duty Cycle receiving

  • Fast Tx or Rx frequency hopping

  • Carrier sense multiple access (CSMA)

  • Automatic ACK and re-sending

  • Antenna diversity

  • 4-wire SPI interface

  • Supporting both direct and packet modes, with configurable packet handler and 128- Byte FIFO

  • NRZ format, Manchester, whiten data coding, FEC


Application


  • Automatic meter reading

  • Home security and building automation

  • ISM-band data communication

  • Industrial monitoring and control

  • Remote control and security system

  • Remote key entry

  • Wireless sensor node

  • Tag reader and writer


Design documents and resources
DEMO & Tools:
RFPDK_V1.53_Update4_Setup
2022-12-08
CMT2310A_Simple_prj
2023-01-09
cmt2310a_eb_wi_sun
2023-03-29
cmt23x0a_eb_function
2023-03-29
Design Guides:
CMT2310A-RF_EB rev003_sch
2022-08-09
CMT2310A rev003 868 20
2022-08-09
CMT2310A rev003 868 13
2022-08-09
CMT2310A rev003 433 20
2022-08-09
CMT2310A rev003 433 13
2022-08-09
AN241-CMT2310A-EB Evaluation Board User Guide-V0.5-202304
2023-05-04
AN239 CMT2310A Using Guide for CMT2310A Auto-transceiver Function-EN-V0.7 202304
2023-05-04
AN238 CMT2310A RF Parameter Configuration Guide-EN-V0.7-202304
2023-05-04
AN237 CMT2310A Quick Start Guide-EN-V0.7-202304
2023-05-04
AN236 CMT2310A Register Description-EN-V0.8-202304
2023-05-04
AN235 CMT2310A  FIFO and Packet Format Usage Guide -EN-V0.8-202304
2023-05-04
Certification & Test Reports:
RF IC ROHS
2023-05-05
RF IC REACH
2023-05-05
