Ultra-low Power Sub-1GHz Wireless Transceiver

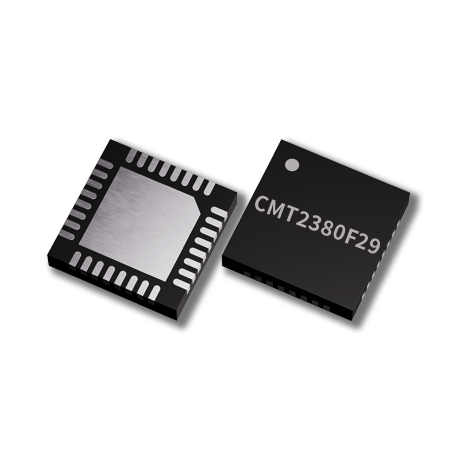

CMT2380F29W
Ultra-low Power Sub-1GHz Wireless Transceiver
Ultra-low Power Sub-1GHz Wireless Transceiver
CMT2380F29 integrates a 32-bit ARM Cortex®-M0 core with a super low power consumption RF transceiver. It is a high efficiency super-low power MCU, applying for wireless application of (G) FSK、(G) MSK and OOK transceiver from 127 to 1020 MHz.CMT2380F29 operates from 2.0 V to 3.6 V and supports up to +20 dBm TX power consumption and -121 dBm receiving sensitivity with the corresponding TX current and RX current of 72 mA and 8.5 mA.(MCU power consumption is not included). CMT2380F29 integrates a wealth of peripherals supports standard UART, I2C and SPI interface, with up to 18 general IO, supports internal high speed /low speed low power consumption RC oscillator and 32.768 kHz external crystal oscillator, supports a variety of packet formats and encoding and decoding methods up to 64-byte Tx/Rx FIFO, supports featured rich RF GPIO, a variety of low power operation mode and fast startup mechanism, high precision RSSI, manual fast frequency hopping and 12 bit high speed ADC multi-channel input,etc. CMT2380F29 has a small QFN package size of 5mmx5mm, which is ideal for small size and power consumption of Internet applications.
Application
Product Type：
RF ICT/R：
TRxModulation：
(G)FSK，(G)MSK，OOKMaximumData Rate：
0.5-300Kbps(FSK) 0.5-40Kbps(OOK)Frequency Range：
127-1020MHz Sub-1GHzSensitivity：
-121dBmOutput Power：
20dBmSize：
5*5*0.75mmPackage：
QFN
