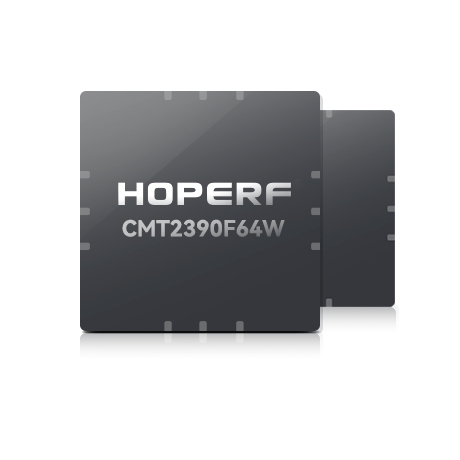

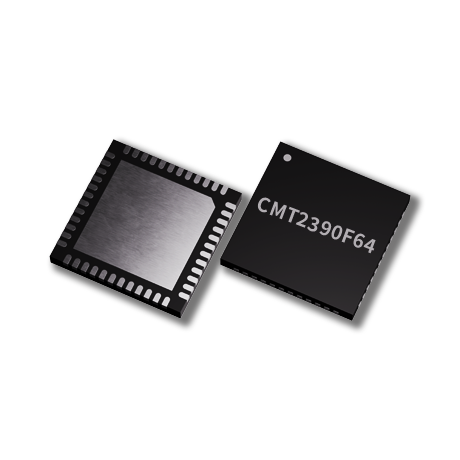

CMT2390F64W

Ultra-low Power Sub-1GHz Wireless Transceiver


Overview


CMT2390F64W is an ultra-low power, high-performance, OOK / 2 (G)FSK / 4 (G)FSK based RF transceiver, applicable to various applications within the 113 - 960 MHz frequency band. The product is part of the CMOSTEK NextGenRFTM product family which covers a complete product line consisting of transmitters, receivers and transceivers. The high-density integration of CMT2390F64 simplifies the required BOM in system design. With Tx power reaching +20 dBm and sensitivity reaching -122 dBm, it can achieve optimized performance of application RF links. Through providing multiple data packet formats and code methods, this product ensures the flexible supporting of various applications. Besides, the CMT2390F64 provides functions such as 128-byte Tx/Rx FIFO, multiple GPIO and interrupt configurations, Duty-Cycle mode, LBT (listen before talk), high-precision RSSI, LBD, power on reset, low-frequency clock output, quick frequency hopping, squelch, etc., which allows more flexible application design and gains more product differentiation capability.


RF Features


  • Working frequency: 113 - 960 MHz

  • Modulation style: 2 (G)FSK, 4 (G)FSK, OOK

  • Data rate: 0.1 - 1000 kbps

  • Sensitivity: 2 FSK, -122 dBm DR=2.4 kbps, 433.92 MHz
                         4 FSK, -88 dBm DR=1 Mbps,433.92 MHz
                         OOK, -94 dBm DR= 300 kbps, 433.92 MHz

  • RX current: 9.6 mA (DCDC) @ 433.92 MHz,FSK
                          ( Only apply for the RF operation current )

  • TX current: 30 mA @ 13 dBm, 433.92 MHz, FSK / 82 mA@ 20 dBm,433.92 MHz, FSK
                         ( Only apply for the RF operation current )

  • Supporting both direct and packet modes, with configurable packet handler and 128-Byte FIFO


System Features


  • Working voltage: 1.8 – 3.6 V

  • Working temperature: - 40 – 85 ℃

  • Package: QFN 48 6x6


Application


  • Auto metering

  • Home security and building automation

  • Wireless sensor nodes and industrial monitoring ISM band data communication

  • Tag reader and writer

Design documents and resources
DEMO & Tools:
cmt2390f64_qfn48_eb_funciton
2023-04-11
Design Guides:
AN247-CMT2390F64-EB User Guide_V0.1
2023-05-04
