LORA Transceiver Module
Overview

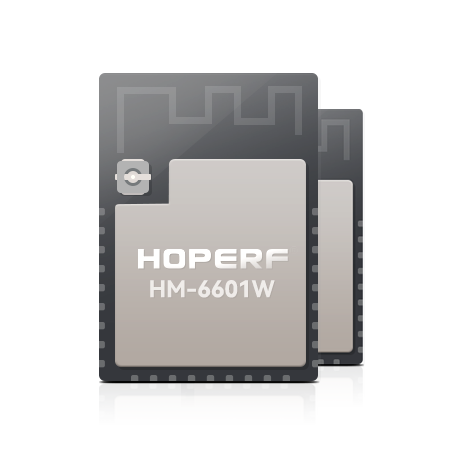

The HM-6601 module includes a general LoRa wireless communication SoC, integrated with a RF transceiver and a 32-bit RISC MCU. The MCU uses ARM Cortex M4, with 48 MHz operation frequency. The RF Transceiver has continuous frequency coverage from 150 MHz to 960 MHz.The HM-6601 Module provides ultra-long range and ultra-low power communication for LoRa application. HM-6601 can achieve a high sensitivity to -138 dBm and the maximum transmit power is up to +22 dBm. This makes the module suitable to be used in long range LoRa and have high efficiency.
Features
Working Voltage: 1.7V - 3.7V
Working Frequency: 433.92 MHz (for China), 470 MHz (for China), 868 MHz (for Europe), 915 MHz (for USA/Canada)
Receiving Sensitivity: -138 dBm @SF=12, BW=125KHz
Tx Current: 108mA @+22dbm(3.3V), 433.92 MHz (for China)
Rx Current: 10mA @433.92 MHz (for China
Applications
Smart meters
Supply chain and logistics
Building automation
Agricultural sensors
Smart cities
Retail store sensors
Asset tracking
Street lights
Parking sensors
Environmental sensors
Healthcare
Safety and security sensors
- Remote control applications
