RF Data Link

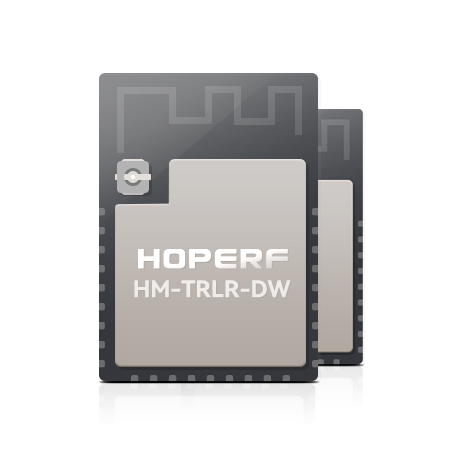

HM-TRLR-DW
Advanced mixed-signal design with a pioneering adaptive rate algorithm.
RF Data Link
HM-TRLR-D series is a low cost, high performance transparent transceiver with operating at 433/470/868/915 MHz. It is LoRa/FSK/ GFSK/OOK modulation variety, multi-interface mode(TTL/RS232/RS485), high output power, high sensitivity, long transmission distance and most of the parameters can be set via the command. Receive and send data to automatically switch. It has a wide operating voltage and low sleep current. It is flexible for the users to set the UART baud rate, output power, data rate, frequency select, modulation mode select etc parameters. It is your ideal choice for designing wireless data transmission products which can be widely used on wireless data transmission field.
Application of RF Data Link Transceiver Module HM-TRLR-DW:
● Remote control, remote measurement
● Access control
● Data collection
● Intelligence household appliance
● Wireless meter
● Identification system
● IT household appliance
● Baby monitoring system
Modulation：
LoRa/FSK/GFSK/OOKFrequency：
433/470/868/915MHz Sub-1GHzVDD：
3.3V-5.5VMax.Data Rate：
115.2KbpsCurrent-Tx：
130mACurrent-Rx：
20mASensitivity：
-139dBmOutput：
20dBmSize：
16*47mmInterface：
SPI
HM-TRLR-D-TTL-915_FCC
HM-TRLR-D-TTL-868_CE
HM-TRLR-D-TTL-470_FCC
HM-TRLR-D-TTL-470_CE
HM-TRLR-D-TTL-433_FCC
HM-TRLR-D-TTL-433_CE
RF Module ROHS
RF Module REACH
