RFM22BW
RF Transceiver
RFM22BW
Advanced mixed-signal design on an independently innovated development platform.
RF Transceiver

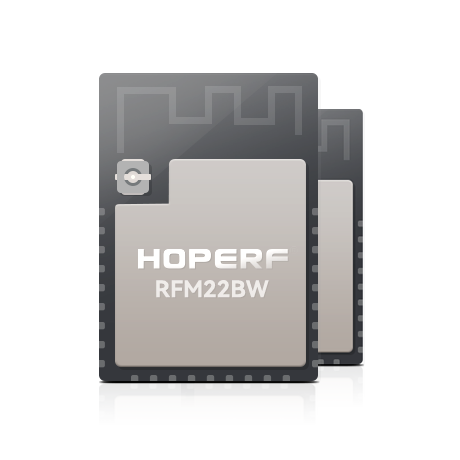

HopeRF's RFM22B/23B are highly integrated,low cost,433/868/915MHZwireless ISM transceivers module. The low receive sensitivity(-121dBm)coupled with industry leading +20dBm output power ensures extendedrange and improved link performance. Built-in antenna diversity andsupport for frequency hopping can be used to further extend range and enhanceperformance.

Additional system features such as an automatic wake-up timer, low battery detector, 64 byte TX/RX FIFOs, automatic packet handling, and preamble detection reduce overall current consumption and allow the use of lower-cost system MCUs. An integrated temperature sensor, general purpose ADC, poweron-reset (POR), and GPIOs further reduce overall system cost and size.

The RFM22B/23B’s digital receive architecture features a high-performance ADC and DSP based modem which performs demodulation, filtering, and packet handling for increased flexibility and performance. The direct digital transmit modulation and automatic PA power ramping ensure precise transmit modulation and reduced spectral spreading ensuring compliance with global regulations including FCC, ETSI.

An easy-to-use calculator is provided to quickly configure the radio settings, simplifying customer's system design and reducing time to market

Applications:
 Remote control
 Home security & alarm
 Telemetry
 Personal data logging
 Toy control
 Tire pressure monitoring
 Wireless PC peripherals
 Remote meter reading
 Remote keyless entry
 Home automation
 Industrial control
 Sensor networks
 Health monitors
 Tag readers

Product Type:

RF Module

T/R:

TRx

Modulation:

FSK/(G)FSK/OOK

MaximumData Rate:

256Kbps

Frequency Range:

433/868/915MHz Sub-1GHz

Sensitivity:

-121dBm

Output Power:

20dBm

Size:

16*16mm

Package:

DIP/SMD
