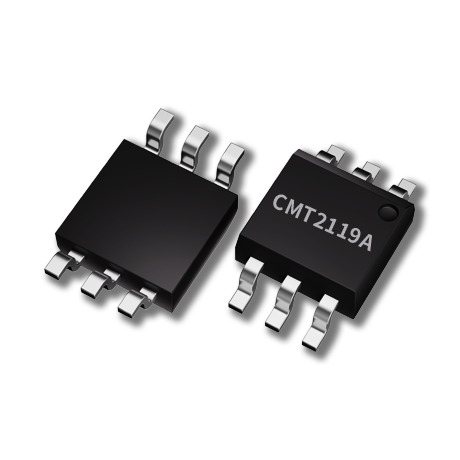

CMT2119AW
FSK/OOK IC
CMT2119AW
Advanced mixed-signal design on an independently innovated development platform.
FSK/OOK IC

The CMT2119AW is a high performance, highly flexible, low-cost, single-chip (G)FSK/OOK RF transmitter IC for various 240 to 960 MHz wireless applications. It is a part of the CMOSTEK NextGenRFTM family, which includes a complete line of transmitters, receivers and transceivers. The CMT2119AW provides the simplest way to control the data transmission.

The transmission is started when an effective level turnover is detected on the DATA pin, while the transmission action will stop after the DATA pin holding level low for a defined time window. The chip features can be registers through the 2-wire interface, or programming the embedded EEPROM with CMOSTEK USB Programmer of 1.8 V to 3.6 V, consumes 27.6 mA (FSK @ 868.35 MHz) when transmitting +10 dBm output power, and only leak 20 nA when it is in sleep state. The CMT2119AW transmitter together with the CMT2219A receiver enables a robust RF link.

Applications of RF Transmitter IC CMT2119AW:

● Low-Cost Consumer Electronics Applications
● Home and Building Automation
● Remote Fan Controllers
● Infrared Transmitter Replacements
● Industrial Monitoring and Controls
● Remote Lighting Control
● Remote Automated Meter Reading
● Wireless Alarm and Security Systems
● Remote Keyless Entry (RKE)



Product Type:

RF Chip

T/R:

TX

Modulation:

(G)FSK/OOK

MaximumData Rate:

0.5-100Kbps(FSK) 0.5-30Kbps(OOK)

Frequency Range:

240-960MHz Sub-1GHz

Sensitivity:

-

Output Power:

13dBm

Size:

2.92*2.8*1.1mm

Package:

SOT

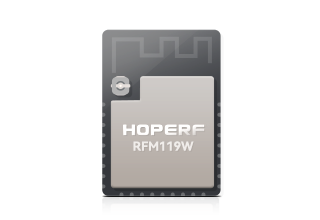

Related Products
