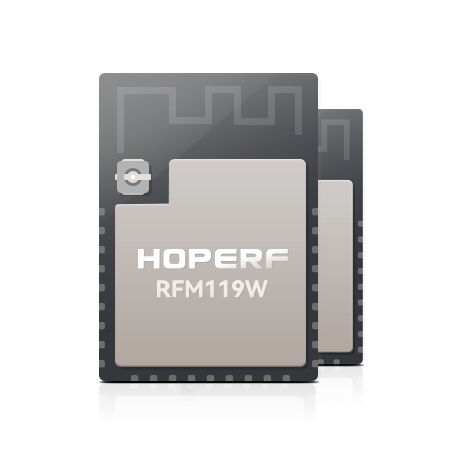

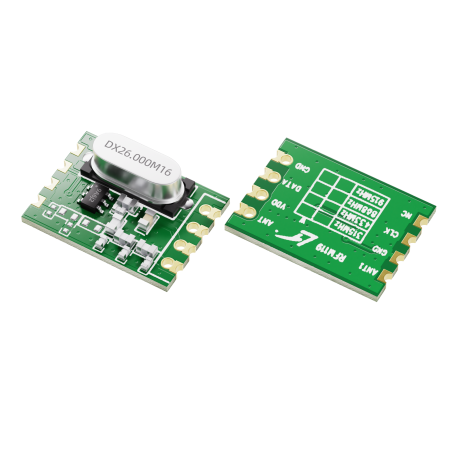

(G)FSK/OOK RF transmitter module
RFM119W
Advanced mixed-signal design on an independently innovated development platform.
(G)FSK/OOK RFThe RFM119W-RFM119SW is a high performance, highly flexible, low-cost, single-chip (G)FSK/OOK RF transmitter module for various,240 to 960 MHz wireless applications. It is a part of the HOPERF NextGenRFTM family, which includes a complete line of transmitters, receivers and transceivers. The RFM119W provides the simplest way to control the data transmission.
The transmission is started when an effective level turnover is detected on the DATA pin, while the transmission action will stop after the DATA pin holding level low for a defined time window, or after a two-wire interface (TWI) command is issued. The chip features can be configured in two different ways: setting the configuration registers through the TWI, or programming the embedded RFPDK. The device operates from a supply voltage of 1.8V to 3.6 V, consumes 27.6 mA (FSK @ 868.35 MHz) when transmitting +10 dBm output power, and only leak 20 nA when it is in sleep state. The RFM119W-RFM119SW transmitter together with the CMT2219A receiver enables a robust RF link.
Applications of RF Transmitter Module RFM119W:
● Low-Cost Consumer Electronics Applications
● Home and Building Automation
● Infrared Receiver Replacements
● Industrial Monitoring and Controls
● Remote Automated Meter Reading
● Remote Lighting Control
● Wireless Alarm and Security Systems
● Remote Keyless Entry (RKE)
Product Type：
RF ModuleT/R：
TXModulation：
2(G)FSK/OOKMaximumData Rate：
0.5-100Kbps(FSK/GFSK) 0.5-30Kbps(OOK)Frequency Range：
240-960MHz Sub-1GHzSensitivity：
-Output Power：
13dBmSize：
17.8*12.8*5mmPackage：
TWI
RFDK_PIC16_LCD_V1_1hardware_131029
RFMXXB_TOOLS
RFXXB_TOOLS
HopeRF_RFDK_RFMxx_DEMO_V2_1_operation_manual
HopeRF_RF-EVB_manual_V1_21
AN0002-Hopeduino_platform_construction_guideline
HopeRF_HSP_V1_3
CP210x_VCP_Windows
