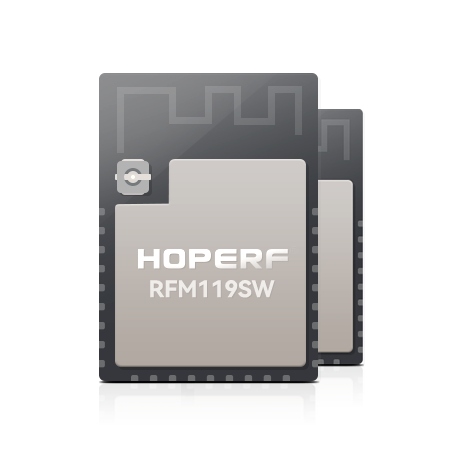

RFM119SW
(G)FSK/OOK RF Transmitter Module
RFM119SW
Advanced mixed-signal design on an independently innovated development platform.
(G)FSK/OOK RF
Transmitter Module

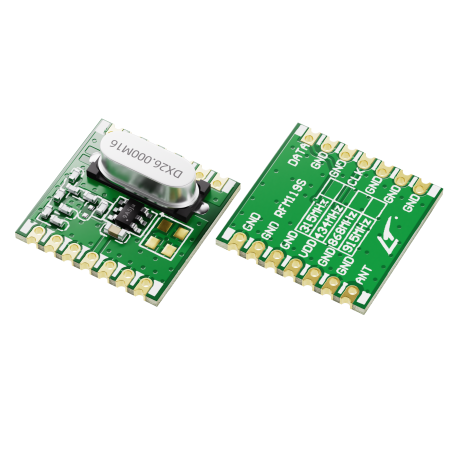

The RFM119/RFM119S is a high performance, highly flexible, low-cost, single-chip (G)FSK/OOK transmitter for various,240 to 960 MHz wireless applications. It is a part of the HOPERF NextGenRF TM family, which includes a complete line of transmitters, receivers and transceivers. The RFM119/RFM119S provides the simplest way to control the data transmission. The transmission is started when an effective level turnover is detected on the DATA pin, while the transmission action will stop after the DATA pin holding level low for a defined time window, or after a two-wire interface (TWI)  command is issued. The chip features can be configured in two different ways: setting the configuration registers through the TWI, or programming the embedded RFPDK. The device operates from a supply voltage of 1.8 V to 3.6 V, consumes 27.6 mA (FSK @ 868.35 MHz) when transmitting +10 dBm output power, and only leak 20 nA when it is in sleep state. The RFM119/RFM119S transmitter together with the CMT2219A receiver enables a robust RF link.

Applications:
Low-Cost Consumer Electronics Applications

Home and Building Automation

Remote Fan Controllers

Infrared Transmitter Replacements

Industrial Monitoring and Controls

Remote Lighting Control

Wireless Alarm and Security Systems

Remote Keyless Entry (RKE)

Product Type:

RF Module

T/R:

TX

Modulation:

FSK/GFSK/OOK

MaximumData Rate:

100Kbps

Frequency Range:

240-960MHz Sub-1GHz

Sensitivity:

-

Output Power:

13dBm

Size:

16*16*5mm

Package:
