240-960MHz OOK transmitters

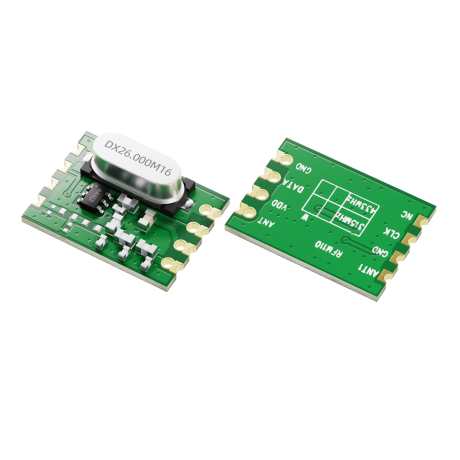

RFM110W
Advanced mixed-signal design on an independently innovated development platform.
240-960MHzThe RFM110W-RFM117W devices are ultra low-cost, highly flexible, high performance, single-chip OOK transmitters for various 240 to 960 MHz wireless applications. The RFM110W covers the frequency range from 240 to 480MHz while the RFM117W covers the 240 to 960 MHz frequency range. They are part of the CMOSTEK NextGenRFTM family, which includes a complete line of transmitters, receivers and transceivers.
With very low current consumption, the device modulates and transmits the data which is sent from the host MCU. An embedded EEPROM allows the frequency, output power and other features to be programmed into the chip using the stock products of 433.92/868.35 MHz are available for immediate demands without the need of EEPROM programming.The RFM110W-RFM117W transmitter together with the RFM21xW receiver enables an ultra low cost RF link.
Applications of RF Transmitter Module RFM110W:
● Low-Cost Consumer Electronics Applications
● Home and Building Automation
● Remote Fan Controllers
● Infrared Transmitter Replacements
● Industrial Monitoring and Controls
● Remote Lighting Control
● Wireless Alarm and Security Systems
● Remote Keyless Entry (RKE)
Product Type：
RF ModuleT/R：
TXModulation：
OOKMaximumData Rate：
40KbpsFrequency Range：
240-480MHz Low-frequencySensitivity：
-Output Power：
13dBmSize：
17.8*12.8*5mmPackage：
TWI
