OOK Transmitter

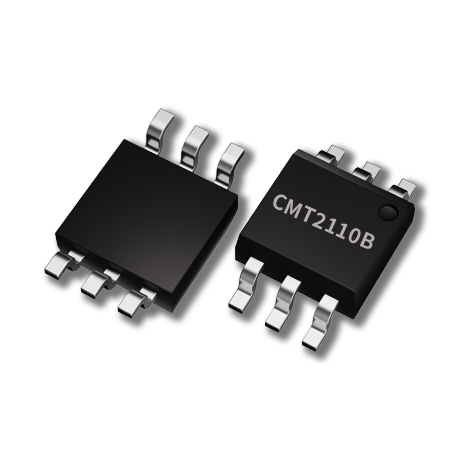

CMT2110BW
Advanced mixed-signal design on an independently innovated development platform.
OOK Transmitter
The CMT2110/17B devices are ultra low-cost, highly flexible, high performance, single-chip OOK transmitters for various 315/434/868/915 MHz wireless applications. The CMT2110B covers the frequency range from 312 to 480 MHz while the CMT2117B covers the 624 to 960 MHz frequency range. They are part of the CMOSTEK NextGenRFTM family, which includes a complete line of transmitters, receivers and transceivers. With very low current consumption,the device modulates and transmits the data which is sent from the host MCU. The CMT2110/17B uses a 1-pin crystal oscillator circuitwith the required crystal load capacitance integrated on-chip to minimize the number of external components.The CMT2110/17B transmitter together with the CMT221x receiver enables an ultra low cost RF link.
Applications of RF Transmitter IC CMT2110B:
Low-Cost Consumer Electronics Applications
Home and Building Automation
Remote Fan Controllers
Infrared Transmitter Replacements
Industrial Monitoring and Controls
Remote Lighting Control
Wireless Alarm and Security Systems
Remote Keyless Entry (RKE)
Product Type：
RF ChipT/R：
TXModulation：
OOKMaximumData Rate：
0.5-20kbpsFrequency Range：
312-480 MHz Low-frequencySensitivity：
-Output Power：
13dBmSize：
2.92*2.8*1.1mmPackage：
SOT
