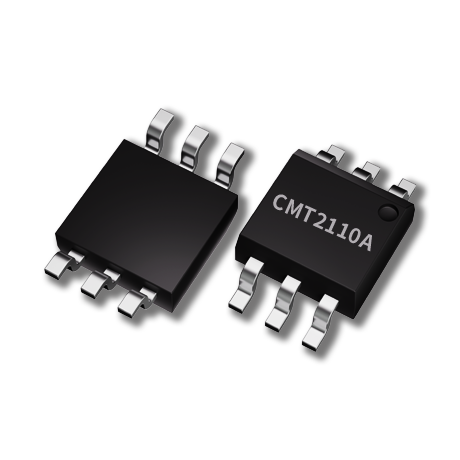

CMT2110AW
OOK RF IC
CMT2110AW
Advanced mixed-signal design on an independently innovated development platform.
OOK RF IC

The CMT2110AW is an ultra low-cost, highly flexible, high performance, single-chip OOK RF transmitter IC for various 240 to 480 MHz wireless applications. It is part of the CMOSTEK NextGenRFTM family, which includes a complete line of transmitters, receivers and transceivers. The device only requires 1-wire interface for the external MCU or encoder to send in the data and control the transmission.

An embedded EEPROM allows the frequency, output power and other features to be programmed into the chip using the CMOSTEK USB Programmer and RFPDK. Alternatively, in stock products of 315/433.92 MHz are available for immediate demands with no need of EEPROM programming. The CMT2110AW uses a 1-pin crystal oscillator circuit with the required crystal load capacitance integrated on-chip to minimize the number of external components. The CMT2110AW receiver together with the CMT211x transmitter enables an ultra low cost RF link.

Applications of RF Transmitter IC CMT2210AW:

● Low-Cost Consumer Electronics Applications

● Home and Building Automation

● Remote Fan Controllers

● Infrared Transmitter Replacements

● Industrial Monitoring and Controls

● Remote Lighting Control

● Wireless Alarm and Security Systems

● Remote Keyless Entry (RKE)



Product Type:

RF Chip

T/R:

TX

Modulation:

OOK

MaximumData Rate:

0.5-30Kbps

Frequency Range:

240-480MHZ Low-frequency

Sensitivity:

-

Output Power:

13dBm

Size:

2.92*2.9*1.1mm

Package:

SOT
