RF Data Link
HM-TRPW
Advanced mixed-signal design on an independently innovated development platform.
RF Data Link

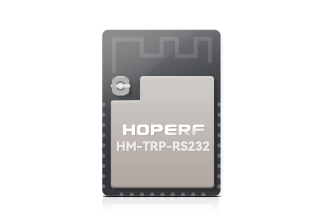

HM-TRP series is a low cost, high performance transparent FSK RF data link module data transceiver with operating at 434/470/869/915 MHz. It features small size, high output power, high sensitivity, long transmission distance and high communication data rate with auto set up for communication change and data receiving and transmission control. There is UART interface, it is easy to realize the wireless data transmission with only providing the UART data. It is flexible for the users to set the UART baud rate, frequency, output power, data rate, frequency deviation, receiving bandwidth etc parameters. It is your ideal choice for designing wireless data transmission products which can be widely used on wireless data transmission field.
Application of RF Data Link Transceiver Module:
● Remote control, remote measurement system
● Wireless meter
● Access control
● Identification system
● Data collection
● IT household appliance
● Intelligence household appliance
● Baby monitoring system
Product Type：
RF ModuleT/R：
TRxModulation：
2(G)FSKMaximumData Rate：
115.2KbpsFrequency Range：
433/470/868/915MHz Sub-1GHzSensitivity：
-117dBmOutput Power：
20dBmSize：
16*20*2mmPackage：
DIP
HM-T-433_ETSI
HM-T-868_ETSI
HM-TRP-433_11DBM_ETSI
HM-TRP-868_11DBM_ETSI
HM-TRP-915_20dBm_-FCC
HM-TRP-868(10dBm)-CE
HM-TRP-433(0dBm)-FCC
HM-TRP-433S(10dBm)-CE
HM-TRLR-S-470_CE
HM-TRLR-S-470_FCC
RF Module ROHS
RF Module REACH
