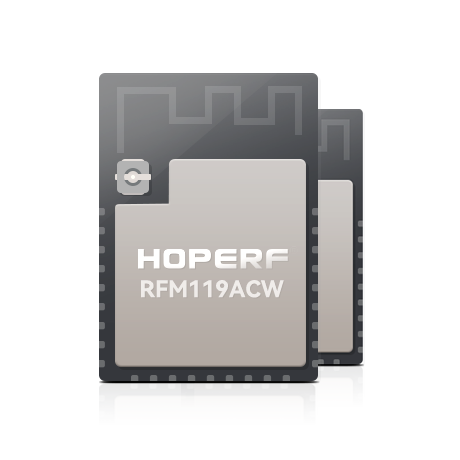

RFM119ACW

Single-chip (G)FSK/OOK transmitter module


Descriptions

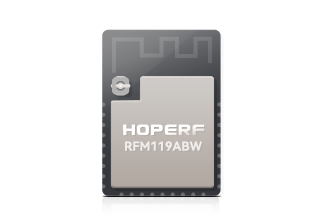

The RFM119ABW/RFM119ACW is a high performance, highly flexible, low-cost, single-chip (G)FSK/OOK transmitter for various,240 to 960 MHz wireless applications. It is a part of the HOPERF NextGenRFTM family, which includes a complete line of transmitters, receivers and transceivers. The RFM119ABW/RFM119ACW provides the simplest way to control the data transmission. The transmission is started when an effective level turnover is detected on the DATA pin, while the transmission action will stop after the DATA pin holding level low for a defined time window, or after a two-wire interface (TWI) command is issued. The chip features can be configured in two different ways: setting the configuration registers through the TWI, or programming the embedded RFPDK. The device operates from a supply voltage of 1.8 V to 3.6 V, consumes 27.6 mA (FSK @ 868.35 MHz) when transmitting +10 dBm output power, and only leak 20 nA when it is in sleep state. The RFM119ABW/RFM119ACW transmitter together with the RFM219S receiver enables a robust RF link.


Features


  • Embedded EEPROM:Very Easy Development with RFPDK

                                         All Features Programmable

  • Frequency Range: 240 to 960 MHz

  • FSK, GFSK and OOK Modulation

  • Symbol Rate: 0.5 to 100 ksps (FSK/GFSK)

                          0.5 to 30 ksps (OOK)

  • Deviation: 1.0 to 200 kHz

  • Two-wire Interface for Registers Accessing and EEPROM Programming

  • Output Power: -10 to +13 dBm

  • Supply Voltage: 1.8 to 3.6 V

  • Sleep Current: < 20 nA

  • FCC/ETSI Compliant

  • RoHS Compliant

  • Module Size: 15*14.5*2.2mm (RFM119ABW)

                          16*16*2.2mm (RFM119ACW)


Applications


  • Low-Cost Consumer Electronics Applications

  • Home and Building Automation

  • Remote Fan Controllers

  • Infrared Transmitter Replacements

  • Industrial Monitoring and Controls

  • Remote Lighting Control

  • Wireless Alarm and Security Systems

  • Remote Keyless Entry (RKE)



Design documents and resources
Certification & Test Reports:
RF Module ROHS
2023-05-05
RF Module REACH
2023-05-05
